Description

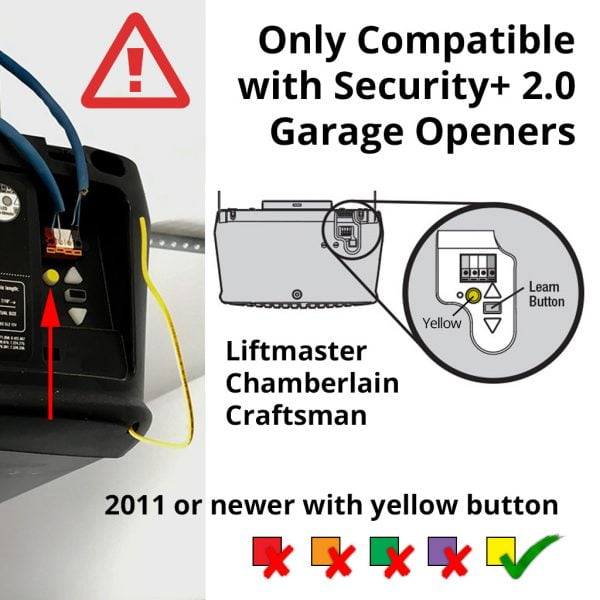

Connect dry contact relays and aftermarket smart garage door controller to Security+ 2.0 LiftMaster, Chamberlain or Craftsman opener with yellow “learn” button.
Most of the garage door openers work with a wired doorbell-type buttons that momentarily connect the two wires. This makes it easy to interface them with the smart garage door controllers such as Garadget (see how it works). A small number of LiftMaster, Chamberlain and Craftsman openers use a proprietary communication protocol and do not support a simple button control. It is however still possible to control them externally by using a native remote as an adapter. This adapter utilizes a native LiftMaster 883LM wired wall controller (user manual).
Installation:

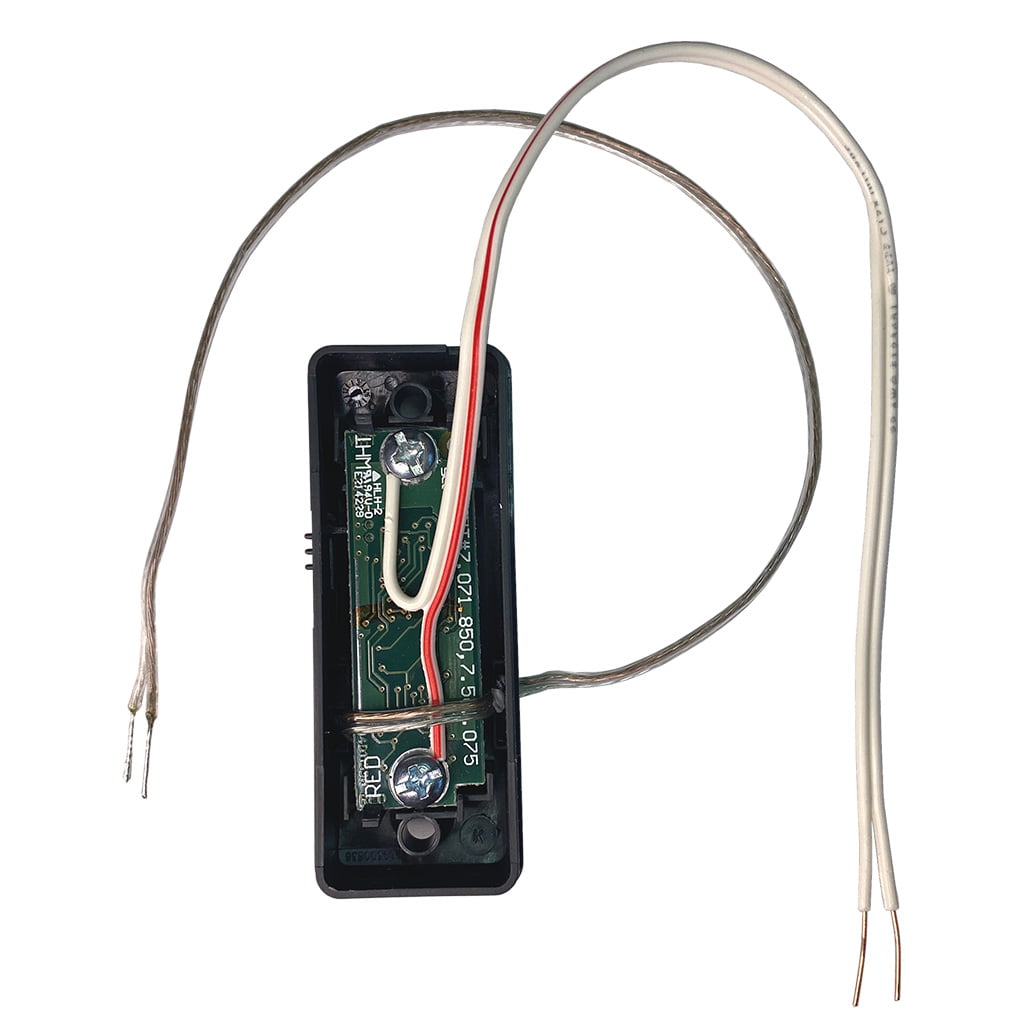

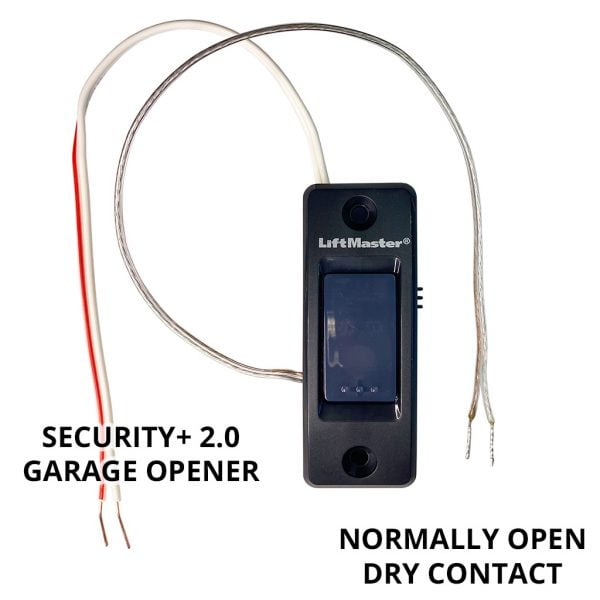

- Keep bronze colored “speaker” wires separate and unconnected. Connect red and white wires to the corresponding terminals in the garage door opener. Wires from the existing wall button should also remain connected. For reliable connection you may need to twist the wires from adapter with the existing wires. Steady yellow light under the main button of the adapter indicates that it receives power.
- Test the button on the adapter and ensure that it operates the door. The existing wall button should also continue to work.
- Connect two remaining bronze wires to relay’s normally open contacts. The polarity of this connection is not important. If using with Garadget for Control4 then plug a short piece of included solid core in controller’s terminals and transition the softer bronze wire on the other end.
- Use app or command controlling your dry contact device to test the remote operation.
Compatibility Notes:
- LiftMaster Elite Series 8500 – the wired connection is not Security+ 2.0 compatible and does not require an adapter. The relay’s contacts can be connected directly to the opener’s terminals. Adapter is required for the wireless connection.
- LiftMaster Elite Series 8500W – is fully Security+ 2.0 compatible and requires adapter for wired or wireless dry contact connection.
- Genie Series 3 GDOs – use different serial protocol from Security+ 2.0. The adapter in this listing does not work for Genie openers, instead use their native adapter for dry contact control.
Control4 Installer?
Check out Garadget for Control4 allowing cost effective and effortless integration of the existing garage door opener into Control4 system without resorting to a patchwork of relays and sensors.
Steve Randazzo (verified owner) –
From an integrators standpoint, thanks to Liftmaster/Chamberlin locking down or not releasing an API this product is your go to solution. Works great!!
Joseph Astling Sr (verified owner) –
I have used like 4 of these already with Control4 Integration and works flawlessly. No dumpster fire driver that’s gonna break.
These are easy to install,inexpensive, solid and reliable. Also better then having to solder a wires to a button.
Frank Nersita (verified owner) –
Came across this by accident and it was exactly what I needed. This is a great integration piece, Easy to install and has given me back my relay control of my garage door with the newer lift master motor. I will be using more of these in the future.
Anthony Diaz (verified owner) –
I’ve used this in multiple scenarios. Hard wired to Control4 and ELAN, as well as on a ZIO from Control4. These have been flawless and limited labor for the cost. I hide them in the bulb/wiring housing of the motor. They are great in that it’s a set it and forget it.
James W Denny Jr (verified owner) –
This is a great product. Installed easily and works great!! Great communication from the garadget folks prior to the sale. Speedy shipping! My order went out the same day!!
If you need an adapter to get a switch that worked with an older door opener working with your new Security 2.0+ door opener, this is the ticket!!
